This practical guide translates the ALARA (As Low As Reasonably Achievable) principle into an operational workflow for nuclear medicine hot labs. We cover the three-zone layout — hot dispensing, warm calibrator staging, and cold decay storage — and the nine-step receive-to-dispose chain that keeps technologists out of the line of sight on every draw. We map the equipment layer that closes the loop: L-blocks and L-benches, lead and tungsten vial shields, mmPb-matched tungsten syringe shields, long-handled shielded carriers, lead apparel, and lockable decay-in-storage waste pots. We then specify the dosimetry program — whole-body badge, non-dominant-hand ring badge, eye-lens dosimeter and electronic personal dosimeter — that reveals which workflow step actually drives extremity dose, and pin the design against the ICRP limits of 20 mSv whole body, 500 mSv extremity and 20 mSv eye lens per year. A quarterly ALARA audit checklist closes the loop for radiation safety officers and hot-lab managers.
1. The ALARA tripod: time, distance, shielding
ICRP and NRC both boil occupational dose control down to three levers. Used alone, each is weak. Used together, they are the whole game.
Time
Every second a technologist spends drawing up a dose at the bench is a second of unshielded exposure. Practice with cold phantoms, pre-stage labels, needles, swabs and shields before touching the source, and keep the active step to the minimum. A technologist who rehearses a FDG draw three times with water can cut their active handling time by 40–60%.
Distance
The inverse-square law: dose rate ∝ 1/r². Doubling the distance from a point source cuts dose to one quarter. This is why long-handled shielded syringe carriers, dose-dispenser tilting stands and floor-positioned dose calibrators often buy more ALARA margin than another 6 mm of lead.
Shielding
The last line of defense — and the one that should never be the first idea. Shielding (L-block, vial shield, syringe shield, apron) works only if the technologist actually positions it between themselves and the source on every single draw. The most common ALARA failure in nuclear medicine is not "wrong mmPb" — it is "the shield was sitting in the drawer."
2. The three-zone hot lab layout
A hot lab is a workflow problem before it is a construction problem. Zone it by activity level, not by function.
|
Zone |
Purpose |
Typical shielding |
|
Hot zone — dispensing / fume hood |
Where unit doses are actually drawn. Highest throughput, highest activity. Treated as potentially contaminated at all times. |
Lead-lined fume hood or isolator; L-block; leaded-glass viewport; 25– 7 0 mm Pb walls for PET |
|
Warm zone — dose calibrator, counting, transport staging |
Where the shielded vial / syringe is measured, labeled and staged for transport. Lower activity, short dwell. |
L-bench surface; shielded dose calibrator duct; shielded syringe carrier |
|
Cold zone — decay storage, waste, record keeping |
Where used syringes and vials wait 10 half-lives before release. No active handling. |
Shielded waste pots; lockable decay-in-storage cabinet |
Flow rule: material moves one way — hot → warm → cold. People move the opposite way. You never walk from the dispensing hood straight to the patient injection room without hand-washing and a contamination check.
3. The end-to-end workflow chain
Design your room around this chain. Every step should have its own shielded station — no carrying an unshielded syringe across the room to "find" the dose calibrator.
Receive the shipped vial into a shielded transfer pot at the hot lab door.
Calibrate the vial in the dose calibrator, still inside its vial shield or shielded well.
Dispense / draw the unit dose behind the L-block or inside the shielded fume hood.
Shield the syringe immediately in a tungsten syringe shield matched to the radionuclide (2–3 mm W for Tc-99m, 8 mm W for F-18).
Re-calibrate the shielded syringe in the dose calibrator well.
Stage the shielded syringe in a shielded carrier for transport.
Transport to the injection room via a long-handled multi-syringe shielded carrier — never hand-held close to the body.
Inject the patient with the shield still on; remove the shield only at the last moment.
Dispose of the used syringe directly into a shielded waste pot — never on the bench.
If any step forces the technologist to hold a vial or syringe in the air without the shield between their hand and the source, your workflow has a hole.
4. The tools that make the workflow stick
A beautifully zoned room is useless if the equipment forces shortcuts. These are the stations that earn their place on the bench:
The L-block / L-bench
The vertical lead wall between the technologist's torso and the vial, plus a horizontal lead shelf under the work surface. A leaded-glass window lets the operator read the vial and dose calibrator without leaning around the shield. For PET (F-18 / Ga-68 at 511 keV), expect 50 mm lead equivalent in the vertical wall.

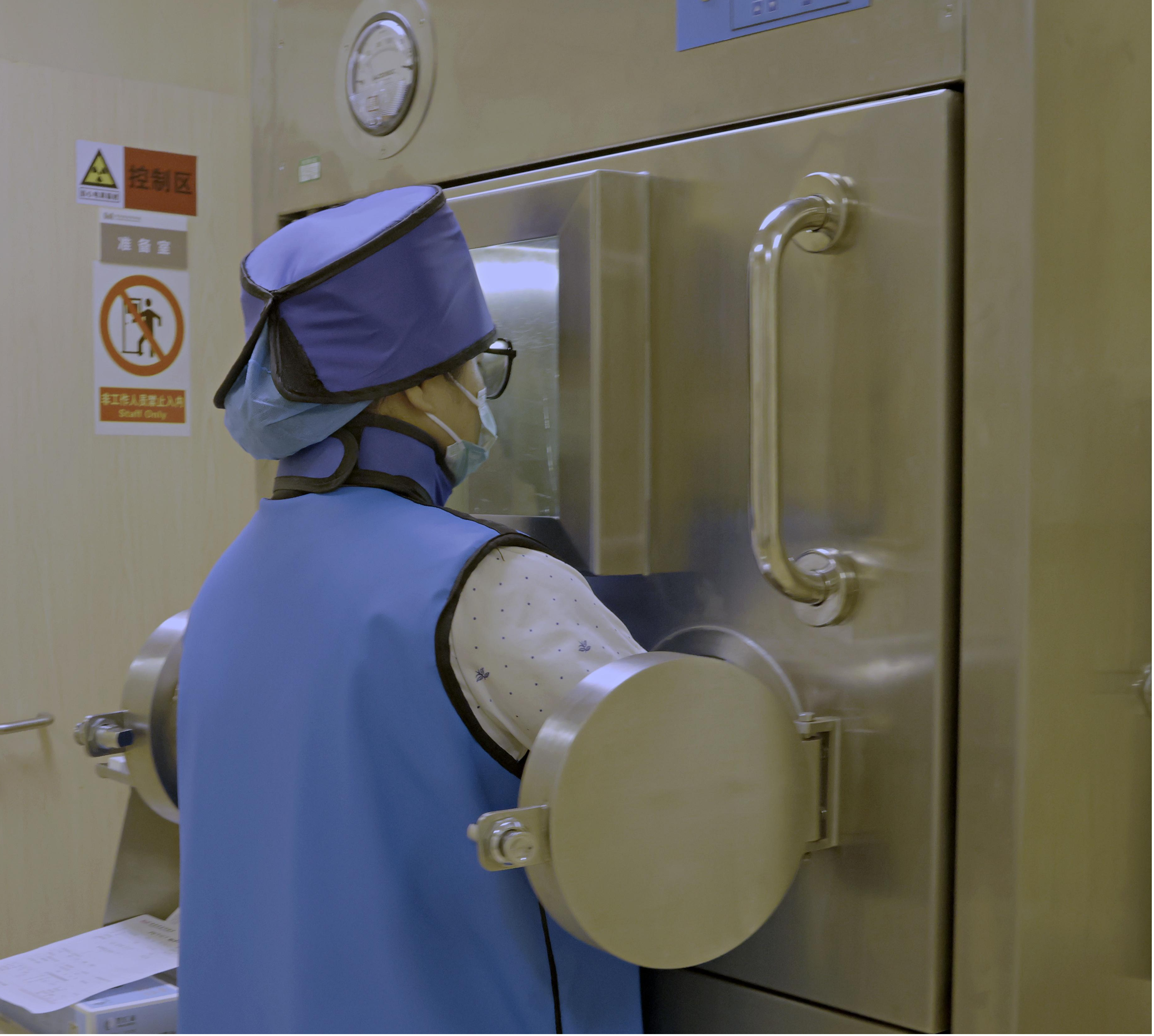

The shielded fume hood / isolator
For airborne contamination control (volatile I-131, tritiated compounds, radiolabeling work). It combines negative-pressure ventilation with the L-block shielding mass.
Vial shields
Lead or tungsten cylinders that slip over the shipped vial. Tc-99m: 3–6 mm Pb. F-18: 30 mm Pb equivalent. The vial should never leave its shield except for the two seconds it spends in the dose calibrator well.
Tungsten syringe shields
2–8 mm tungsten wall, 2.5–10 mmPb equivalent. Choose the mmPb by radionuclide — this is the topic of our companion guide. The shield must be on the syringe before the needle touches the patient.
Shielded syringe carrier
For bench-to-injection-room transport. 3 / 6 / 12 mm Pb tiers; long handle keeps the dose at arm's length. This is where the inverse-square law pays for itself.
Personnel wear
Lead apron (0.25–0.5 mmPb), thyroid collar, leaded eyewear for PET therapy patients, and — most importantly — clean, fitted gloves changed between zones.
5. Dosimetry: how you know it is working
A workflow without measurement is a hope. The monitoring program should answer one question:which step is driving the dose?
Whole-body badge (OSL/TLD) worn at chest level, outside the lead apron — records deep dose equivalent.
Ring / extremity badge on the non-dominant hand, sensitive element facing the palm, during every active draw. Extremity doses in nuclear medicine run 10–50× the whole-body collar reading, because fingers work in direct contact with unshielded syringes.
Eye-lens dosimeter (ICRP 103 lowered the occupational limit to 20 mSv/year averaged over 5 years) — relevant for PET technologists who lean close to the patient during injection.
Electronic Personal Dosimeter (EPD) in PET hot labs — real-time dose rate alarms when a technologist gets too close to a high-activity vial.
Area survey with a Geiger or ion-chamber survey meter at the start and end of every shift.
Wipe-test program on bench surfaces, fume hood, door handles and floor — confirms contamination control.
The classic diagnostic pattern: whole-body badge looks fine, ring badge creeps up. That tells you the problem is at the bench — dispense step, not transport or injection.
6. The numbers to design against
These are the occupational dose limits that should sit in your radiation safety manual:
|
Dose type |
ICRP / NRC limit |
|
Whole body (effective dose) |
20 mSv/year averaged over 5 years; 50 mSv in any single year |
|
Extremities (hands/feet) |
500 mSv/year |
|
Eye lens |
20 mSv/year averaged over 5 years |
|
Skin |
500 mSv/year |
Your ALARA investigation should trigger well below these numbers — typically at 10% of the limit for routine monitoring. If your technologists are averaging more than 5 mSv/year to the ring, the workflow needs redesign, not a reminder email.
7. How APEX equips the ALARA hot lab
APEX Medical Solutions supplies the equipment layer of the workflow, station by station:
|
Workflow step |
APEX product |
|
Receive and stage |
APEX Lead-Lined Transfer Box — lockable, absorbent-lined, 5–20 mm Pb |
|
Bench dispensing |
APEX L-Bench / L-Block with leaded-glass viewport, 25–50 mm Pb equivalent |
|
Vial handling |
APEX Lead / Tungsten Vial Shields — 6 / 10 / 12 / 30 mm Pb tiers |
|
Syringe draw |
APEX Tungsten Syringe Shields — 2 / 3 / 5 / 8 mm wall, with leaded-glass window |
|
Beta emitters (Y-90, Lu-177) |
APEX β-γ Hybrid Syringe & Vial Shields — acrylic liner + tungsten outer |
|
Transport between rooms |
APEX Multi-Syringe Shielded Carrier — 3 / 6 / 12 mm Pb tiers, long handle |
|
Staff wear during therapy |
APEX Lead & Lead-Free Aprons, Thyroid Collars, Leaded Eyewear |
|
Waste / decay storage |
APEX Shielded Waste Pots — lockable, stackable, labeled by half-life |
Every APEX shield is supplied with a measured mmPb rating at the relevant photopeak, so your medical physicist can spec the bench without guesswork.
8. A practical ALARA audit checklist
Run this once a quarter in your hot lab:
-Can a technologist go from vial arrival to syringe injection without ever holding an unshielded source?
-Are vial shields, syringe shields and carriers actually *at the bench*, not in a drawer?
-Is the dose calibrator positioned behind the L-block line of sight?
-Does the waste pot sit within arm's reach of the dispensing hood?
-Are ring badges issued daily and collected at end of shift?
-Does the EPD alarm threshold match your expected dose rate at the dispensing hood?
-Has the contamination / wipe-test schedule been followed in the last 30 days?
-Is there a clearly marked one-way flow: hot → warm → cold?
-Do new technologists rehearse the full draw with cold phantoms before touching activity?
-Are apron thyroid collars and leaded eyewear available at every injection bay?
If any box fails, fix the workflow before you buy more lead.
Frequently Asked Questions
Q1. What does ALARA stand for in nuclear medicine?
ALARA = As Low As Reasonably Achievable. It is the ICRP/NRC principle that occupational radiation exposure should be minimized through time reduction, distance maximization and shielding, not just kept below regulatory limits.
Q2. What are the three pillars of ALARA?
Time (minimize handling near the source), distance (use inverse-square law via long handles and staging), and shielding (L-blocks, vial shields, syringe shields, aprons).
Q3. Where should a ring dosimeter be worn in a hot lab?
On the non-dominant hand, on the finger closest to the source during syringe draws, with the sensitive element facing the palm. It is collected daily and read monthly.
Q4. Why are hand doses 10–50× higher than whole-body doses in nuclear medicine?
Because fingers work in direct proximity to unshielded syringes and vials during dose draw. The torso is usually behind an L-block or apron; the fingers are not.
Q5. What is decay-in-storage?
The practice of storing used syringes and vials in shielded pots for at least 10 half-lives until their activity falls to background, at which point they can be disposed of as ordinary non-radioactive waste.
Q6. Do I need a fume hood in my hot lab?
If you handle volatile radioiodine (I-123, I-131), tritiated compounds, or perform open-vial radiolabeling — yes. If you only dispense sealed FDG and Tc-99m unit doses, a shielded L-bench may suffice. Confirm with your medical physicist.
Bottom line
A safe hot lab is not built with the thickest lead on the market. It is built so that the shield is always already between the technologist and the source, on every step of the workflow, every shift. Time reduces the active handling window. Distance buys margin at transport. Shielding closes the gap at the bench. And dosimetry tells you where the next leak is.
Spec the room around the workflow, not around the equipment catalogue. Start from the three-zone layout, walk the dispense → calibrate → shield → transport → inject chain end to end, and put the right APEX shield at every station where the technologist's hand meets the source.
Next step: Walk your hot lab with the audit checklist in Section 8, and ask APEX for a bench-layout recommendation matched to your dominant radionuclides and daily patient throughput.
This article is for radiopharmacy managers, medical physicists, radiation safety officers and hot-lab technologists. It does not replace a site-specific shielding survey or a radiation safety program review by your qualified RSO.
