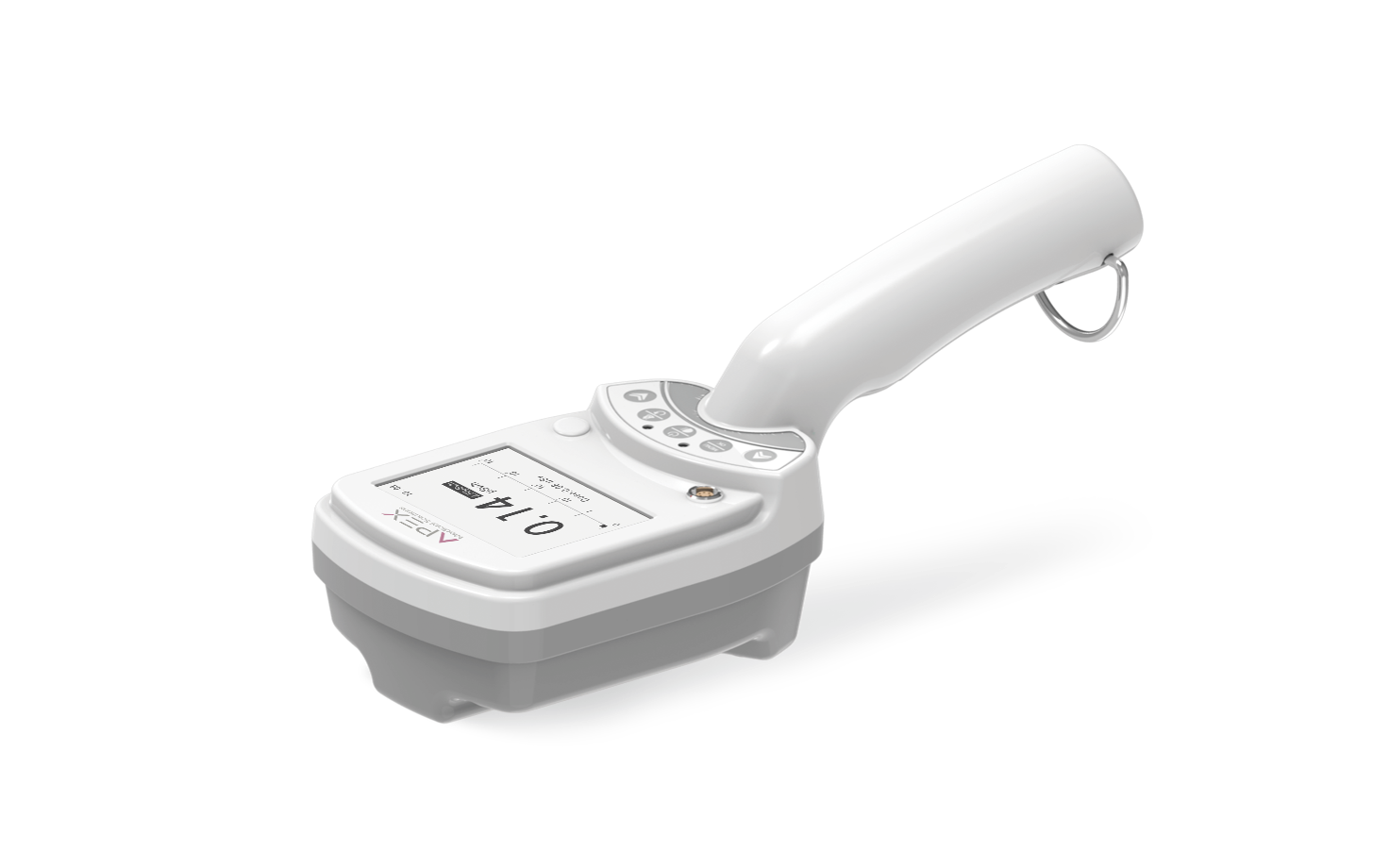

Radiation Monitoring AP3100G Radiation Survey Meter
AP3100G Survey Meter is used for X/ yradiation level with high sensitivity, short response time, wide measurement in various radioactive workplaces， dynamic range， and good energy response.
Product Details
Applications
Radiation health supervision, environmental protection enforcement, customs inspection, public security, emergency response, environmental monitoring and assessment, and other radioactive scenarios.
Features
①High-sensitivity measurement: Fast FRC algorithm for prompt pulsed radiation detection.
②Dynamic measurement alerts: The frequency of the measurement alert tone adjusts in real time based on the ambient radiation level， making it easy to interpret；
based on ambient light conditions；③Auto-sensing backlight: The display brightness can be adjusted manually or automatically adjusted
④One-click data logging: During inspection tasks, data can be saved with a single click, facilitating on-site inspection documentation and traceability；
⑤Multiple alarm modes: Features audible, visual, and vibrating alarms when thresholds are exceeded, providing multiple layers of protection for personnel safety；
⑥Radiation Data Networking: Monitoring data can be transmitted wirelessly to the monitoring platform, facilitating data collection, analysis, and management (optional).Technical Specifications
Technical Specifications
|
Product Model |
AP3100G-P |
|
Detector Type |
Plastic scintillato |
|
Detector Size |
1 inch |
|
Measuring Range0 |
0.01uSv/h~10Sv/h |
|
Intrinsic Error |
±15% |
|
Response Time |
3s(>1uSv/h) |
|
Energy Range |
30keV~3MeV |
|
Communication |
USB、Bluetooth (optional) |
|
Power |
2×AA batteries (rechargeable or alkaline) |
|
Feature |
Pulsed radiation capable |
