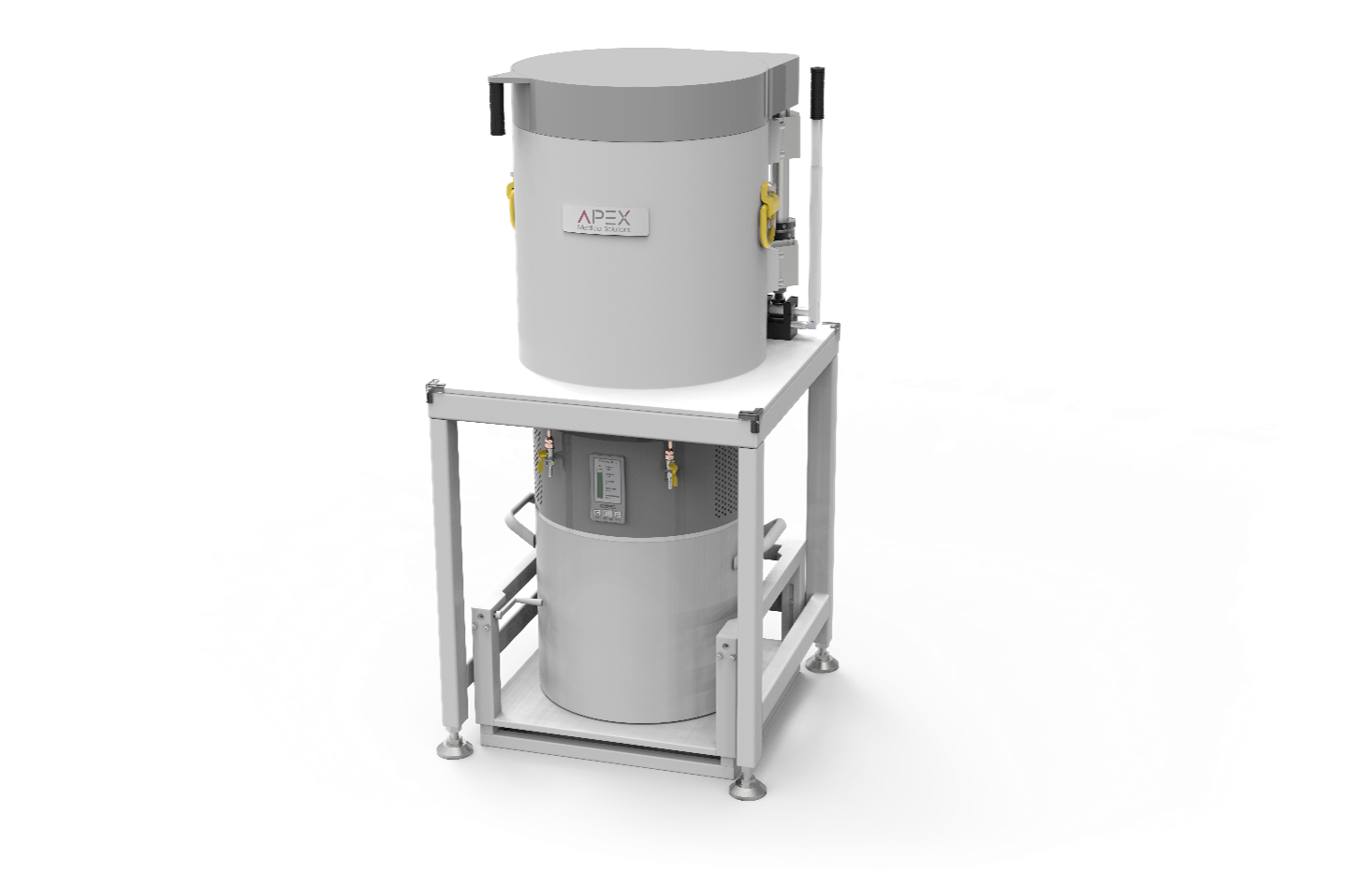

Radiation Monitoring AP4200-HPGeHigh-Purity Germanium Gamma Spectrometer
AP4200-HPGe is a laboratory-grade high-purity germanium(HPGe)y-ray spectrometry system featuring high-purity germanium crystal, advanced preamplifier, low-background lead shield, stable digital multichannel analyzer (MCA), and cooling system for superior energy resolution and minimal interference. It includes comprehensive y-spec-trum analysis software for accurate radioactivity characterization.
Product Details
Applications
Nuclide identification and radiochemical purity testing of radiopharmaceuticals.
Tests Performed
Nuclide identification, nuclear purity assay.
Features
①In-house developed energy spectrum
②Cooling system
③Low-background lead chamber
④Digital multi-channel detector analysis software
⑤Passive efficiency calibration software
⑥Low noise level
⑦Laser 3D scanning modeling
System Configuration
HPGe detector, lead shield, digital MCAspectrum analysis software, passive efficiency calibration software, cooling system, optional 3D laser scanner.
Technical Specifications
|
Product Model |
RPPX-30185(Broad Energy) |
|
Energy Range |
5keV~10MeV |
|
Detection Efficiency |
≥30%(50%or other detection efficiencies are optional) |
|
Entry Window Material |
Beryllium or carbon fiber |
|
Energy Resolution |
To 122 keV Peak (5Co)：≤1000ev；To 1.33 MeV Peak (6Co)：≤1.85 keV |
|
Peak-to-Compton |
58：1 |
|
Peak Shape |
FW0.1M/FWHM：1.9；FW0.02M/FWHM：2.65 |
