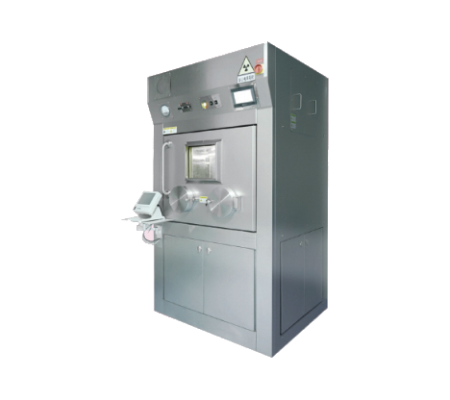

Dispensing Hot Cell

The APFZ-65C Fractional Hot Cell provides radiation shielding for radiopharmaceutical dispensing via three zones: a top control area with HEPA filtration, a middle working area with lead glass and ports, and a bottom auxiliary area featuring an ionization chamber and transport system.

Main Technical Specifications:

Compliant with cGMP biological cleanliness level for the working area

An integrated stainless steel work area equipped with a vertical laminar flow negative pressure ventilation system.
Cleanliness level: Class A (ISO 100)
Air supply method: Vertical laminar flow
Laminar flow velocity: 0.35-0.56 m/sec
Exhaust air volume: 500 m³/h
Sealing method: Inflatable air seal
Air supply filtration: Complete high-efficiency HEPA 99.995%@0.5μm (H14)
Exhaust air filtration: Radioactive gas filter adsorption
Front shielding: 65mm Pb
Side shielding: 60 mm Pb
Target line shielding: 50 mm Pb equivalent

Ergonomically designed operational control panel

Control: Human-machine interface for control and feedback of all information
Visible lead glass window: 320 mm (w) *220 mm (h)
Dose monitoring display: Integrated into the human-machine interface

Dimensions:

Internal dimensions: 850 mm (w) * 590 mm (d) * 680 mm (h)
External dimensions: 1125 mm (w) * 1078 mm (d) * 2400 mm (h)
Accessories: Lighting, UV light, ozone sterilization unit, power outlets, etc.

Radioactive material shielding transfer device

Shielding tray: Made of stainless steel 304, δ 115 mm, 5mm pb
Transfer method: Pneumatic/linear drive

Activity meter ionization chamber shielding

Measurement well shielding: 60 mm Pb

Real-time dose monitoring and radiation safety interlock device

Energy range: 50 KeV — 1.5 MeV
Dose range: 0 μSv/h — 9999 μSv/h
Threshold setting: Arbitrary setting of interlock thresholds
