Hot Cells

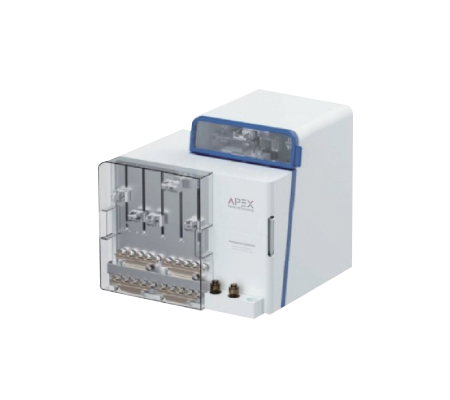

OnePlatform Automatic Synthesizer
General-purpose radiochemical automated synthesizer for 18F and 11C complex nuclide drugs preparation.
Product Details
OnePlatform 3.1s is a general-purpose radiochemical automated synthesizer, which is mainly used for the preparation of ¹⁸F and ¹¹C complex nuclide drugs and also includes the labeling of nuclear medicine metal nuclides such as ⁶Ga, ⁶⁴Cu, ⁰Y, ⁸⁹Zr, ¹⁷⁷Lu. It can realize the synthesis scheme of the current mainstream PET tracer.
Main Technical Specifications:
High-Efficiency Heating & Cooling
Powerful 100W+ metal conduction (up to 200°C) with gentle water-cooling for speed and safety.
Versatile & Flexible Configuration
20 valves and 5 syringes design, fully compatible with diverse PET tracer syntheses.
Integrated HPLC Chromatography
Built-in gradient HPLC with radiation/UV detection for seamless, on-platform purification.
GMP-Compliant Disposable Kits
Supports single-use reagent kits and cassettes to eliminate cross-contamination and simplify operation.
Technical Parameter
Dimensions (WxHxD): 510mm×510mm×500mm
Weight: 45kg
Control system
Software interface type: TCP/IP
Communication cables: network cables, USB
Local Control: Yes
Remote Control: Yes
Computer: Desktop PC or laptop Windows operating system
Configure synthesis module + chromatography module
Power
Standby status: 60W
Working status: 330W
Peak status: 460W
