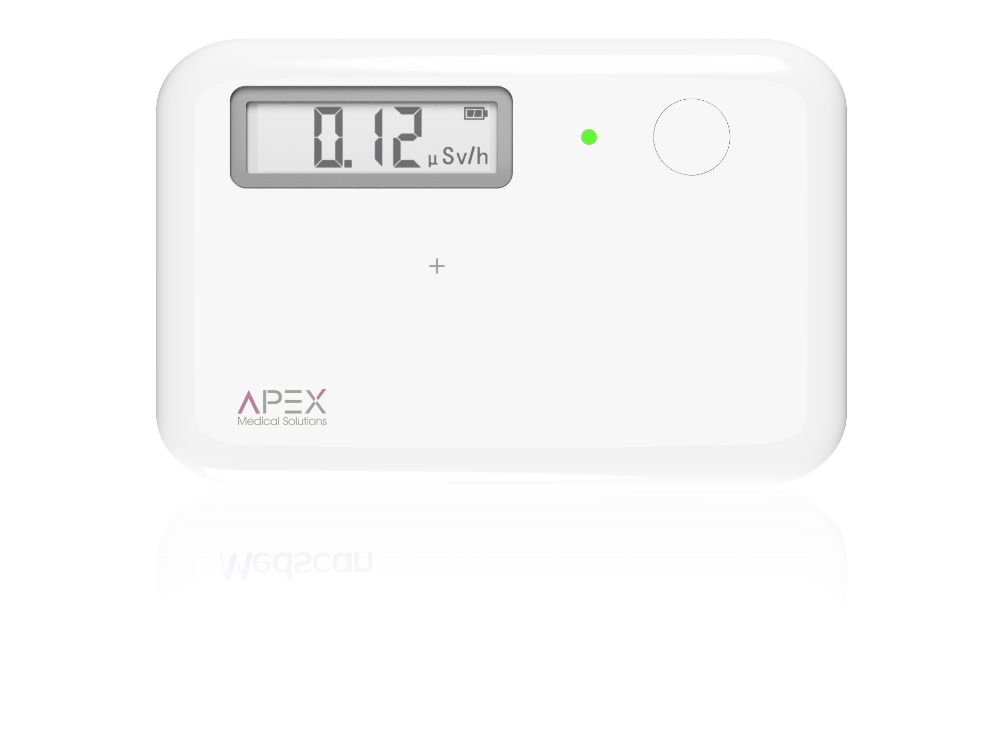

Radiation Monitoring AP3800G Personal Dosimeter and Alarm
AP3800G Personal Dosimeter monitors occupa tional X/y radiation exposure, measuring personal cumulative dose equivalent Hp(10) and instanta dose equivalent rate. It provides real-time readouts and tri-mode alarms above preset thresholds to minimize overexposure risk.
Product Details
Features
①Real-time measurement: Simultaneous dose and dose rate monitoring；
②Dual-threshold alarms: User-configurable within measuring range；
③One-click alarm pause: After the alarm sounds, you can manually pause it with a single click；
④Countdown alarm: Reminds workers to take time-based protective measures when entering areas with radiation；
⑤Tri-mode alarm: Audible, visual, and vibration.
Technical Specifications
|
Product Model |
AP3800G-G |
AP3800G-C |
|
Detector Type |
Energy-compensated G-M tube |
Csl crystal |
|
Measured Rays |
X、y |
X、y |
|
Measuring Range |
0.01uSv/h~100mSv/h |
0.01uSv/h~30mSv/h |
|
Intrinsic Error |
±15% |
±15% |
|
Cumulative Dose Range |
0.01uSv~10Sv |
0.01uSv~10Sv |
|
Energy Range |
48keV~3MeV |
48keV~3MeV |
|
Power |
2×AAA batteries |
2×AAA batteries |
