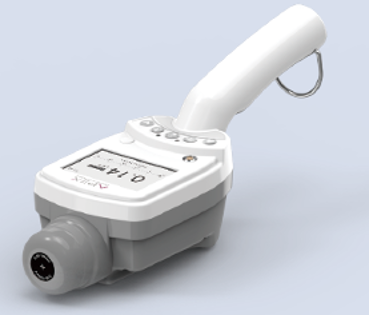

Radiation Monitoring AP3100G-XX、YDose Rate Meter (Low-energy， Pulsed)
AP3100G-XXY Dose Rate Meter (Low-energy， Pulsed) is a professional low-energy X/ dose rate meter for medical shielding assessment and ambi-ent dose equivalent rate measurement. It detects continuous， short-pulse， and pulsed radiation down to 15 keV， widely used in nuclear medicine and health physics for X-ray device monitoring.
Product Details
Applications
Nuclear medicine, X-ray diagnostic shielding testing, pulsed radiation field measurement, radiation health supervision, environmental enforcement, customs, public security, emergency response, and environmental monitoring.
Features
①Low-energy response
②Multi-radiation compatibility
③High-sensitivity measurement
④Dynamic measurement alerts
⑤Auto-sensing backlight
⑥One-Click Data Logging
⑦Multiple Alarm Modes
⑧Radiation Data Networking
Technical Specifications
|
Product Model |
AP3100G-X |
||
|
Detector Type |
Plastic scintillator |
Continuous ShortPulse Response |
30ms |
|
Measuring Range |
0.01uSv/h~10Sv/h |
Min. Pulse Response(1.3Sv/s) |
10ns |
|
Intrinsic Error |
±15% |
Communication |
USB、Bluetooth (optional) 4G(optional) |
|
Energy Range |
15keV~10MeV |
Battery life |
≥24h |
|
Energy |
15keV~60keV，±30% |
Operation Temp |
-30C~50C |
|
response for different energies， using (662 keV，137Cs) as a reference |
60keV~3MeV，±20% |
Operation Humidity |
0~95%RH |
|
3MeV~10MeV，±50% |
Dimensions |
290mm(L)×96mm(W)x125mm(H) |
|
|
Repeatability |
±5% |
Weight |
0.49kg |
