Monitoring

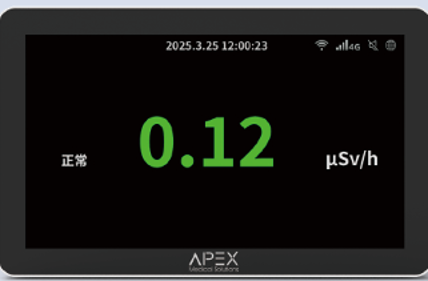

Radiation Monitoring AP1100Med Pro X、Y Radiation Monitor
The AP1100Med Pro is an upgraded premium version of the AP1100Med series， featuring an integrated detector and concealed cabling for clean，decontamination-friendly installation. It offers high sensitivity and fast response with a large color LCD， visual color-flashing alerts， and audible alarms for rapid response and evacuation.
Product Details
Applications
Nuclear medicine, radiotherapy, radiology departments, proton and heavy ion therapy centers, radiophar maceutical facilities, research institutes, laboratories, and radioactive source warehouses.
Features
①Pulsed radiation measurement: Integral detector for pulsed X-ray beams (CT, DR).
②High-definition color display: Equipped with a 10-inch color LCD screen, the font color on the inter face changes and flashes to alert the user when the device malfunctions or triggers an alarm, allowing for a more intuitive view of measurement data and device status.
③POE power supply: Power over Ethernet for simplified cabling and maintenance.
④Versatile Communication: Supports multiple communication methods, including RS485, LAN, Wi-Fi, and 4G (optional), to meet the needs of various environments.
⑤One-touch mute: When sound and light alarms exceed the threshold, a mute button is provided to man -ually disable the audible alarm；
⑥Concealed wiring: The equipment features a concealed wiring design, ensuring that no cables are visible on the wall after installation, resulting in a clean and tidy appearance.
Technical Specifications
|
Product Model |
AP1100Med-G Pro |
AP1100Med-P Pro |
|
Detector Type |
Energy-compensated G-M tube |
Plastic scintillator |
|
Measuring Range |
0.01uSv/h~100mSv/h |
0.01uSv/h~10Sv/h |
|
Intrinsic Error |
±15% |
±15% |
|
Energy Range |
48keV~3MeV |
30keV~3MeV |
|
Communication |
RS485、LAN、WiFi； 4G (Optional) |
RS485、LAN、WiFi；4G(Optional) |
|
Power |
DC12V or POE Switch mschine |
DC12V or POE Switch mschine |
|
Backup Battery |
Optional |
|
