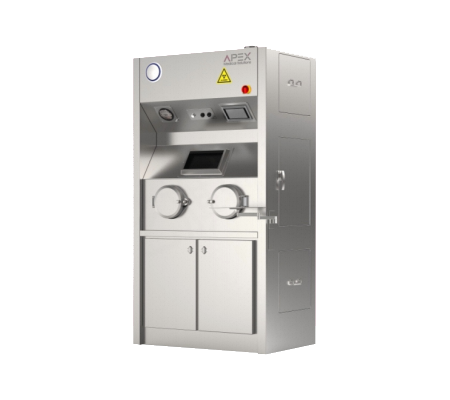

Protective Glove Box

Cat. No.: APFH-40A
Material: Lead/Stainless steel
External Dimension: 1172mm (L)*763mm (W)*2200 mm (H)
Internal Dimension: 856mm (L)x 527mm (W)x 568 mm (H)
Shield: 40mm Pb
Weight: 7800KG
Power supply: Single-phase 220V/50Hz, 3kW

Product Introduction

The protective glove box features a fully isolated protective design and an independent air supply and exhaust system, designed to meet the requirements for the rinsing, filling, and labeling of radioactive pharmaceuticals. This glove box provides high-standard radiation protection, ensuring safety. Ensures that operators comply with radiation safety environmental standards during the rinsing, filling, and labeling of radioactive pharmaceuticals.

Main Technical Description

The protective glove box consists of three distinct sections: the control area, located at the top, is equipped with an independent exhaust unit; the downward-sloping 15° operating control panel facilitates easy daily use and observation by the operator; the work area, situated in the middle, features a leaded glass viewing window on the front and two access handholes for entering the work area; the auxiliary area, located at the bottom, is fitted with a radioactivity meter ionization chamber shielding well and a shielded conveying system, fully meeting the operational requirements for the handling of radioactive pharmaceuticals during the rinsing, filling, and labeling processes.

Cleanliness Class: Class D
Airflow mode: Top supply with bottom return
Laminar wind speed: 0.35-0.56 m/sec
Exhaust airvolume: 800 m2/h
Air supplyfiltration: completely efficient HEPA99.995% @ 0.5um (H14)
Ventilationfiltration: Radioactive gas filter adsorption

Other accessories: lighting lamp, UV lamp, ozone sterilization unit, power socket, etc.
