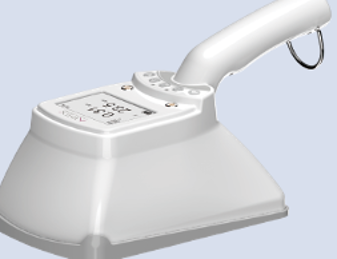

Radiation Monitoring AP170 a、β Surface Contamination Monitor
Surface Contamination Monitor uses a plastic scintillator detector for simultaneous，β， and optional y measurement of surface contamination on floors，walls, tables，and clothing. It supports rechargeable and dry batteries for emergency use and optional 4G/Bluetooth wireless data upload.
Product Details
Application
Radiation supervision, environmental enforcement, customs, public security, emergency response, laborc tories, and research institutions.
Features
①Multi-ray Detection： Equipped with dual detectors to simultaneously measure alpha， beta， and gamma(optional) radiation levels， meeting the needs of various applications；
②Dynamic Measurement Alerts： The frequency of the measurement alert tone changes in real time based on the ambient radiation intensity， making it easy to interpret；
③Auto-sensing Backlight： The display brightness can be adjusted manually or automatically adjusted based on ambient light conditions；
④Multiple Alarm Modes： Features multiple alarm methods-including audible， visual， and vibration alerts—to provide comprehensive protection for personnel safety；
⑤Radiation Data Networking： Patrol data can be wirelessly transmitted to a monitoring platform， facili-tating data statistics， analysis， and management (optional)；
⑥Multiple Power Options： Compatible with both rechargeable and dry batteries to support emergency use；⑦Highly Expandable： Supports combined and wall-mounted applications to accommodate a wide range of scenarios.
Technical Specifications
|
Product Model |
AP170 |
|
Detector Type |
Thin plastic scintillator (ZnS(Ag))； optional energy-compensated G-M tube |
|
Detection Area |
170cm2 |
|
Measured Rays |
a、B rays； optional y ray measurement module |
|
Measuring Range |
0~50000cps |
|
Efficiency |
35%(241Am)、40%(90Sr-90Y) |
|
Battery Life |
≥75h |
|
Communication |
USB， Bluetooth (optional)， 4G (optional) |
