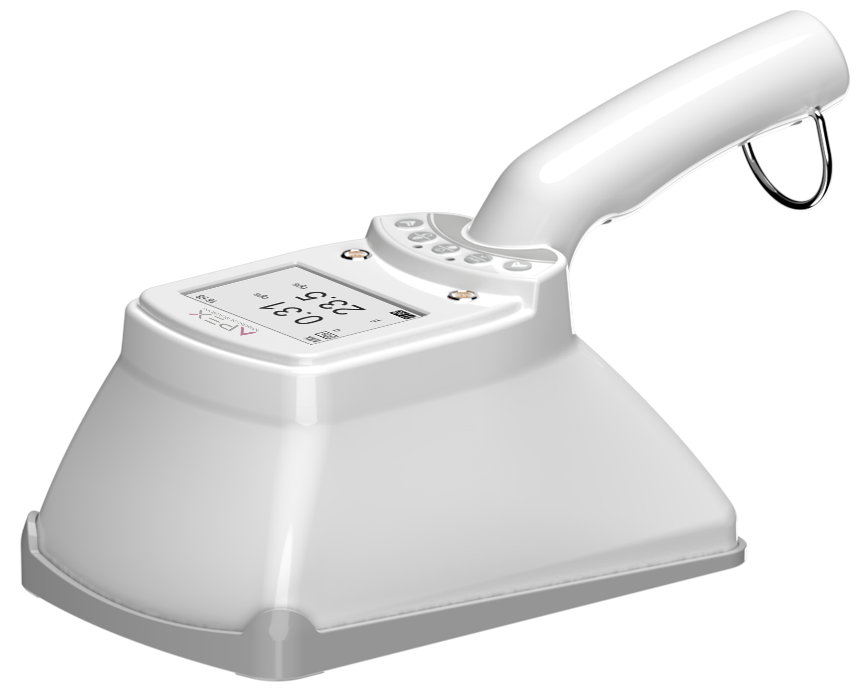

Radiation Monitoring AP3100AB-15 Multifunctional Radiation Meter
AP3100AB-15 simultaneously measures a，β， X， and y radiation in complex radioactive environments.It is used for rapid surface contamination screen- ing and ambient dose rate measurement.
Product Details
Applications
Radiation supervision, nuclear medicine contamination monitoring, radiopharmaceutical facilities, environ-mental enforcement, and emergency response.
Features
①Multi-ray detection: Capable of measuring multiple types of radiation, meeting the needs of radiation detection applications in multi-ray scenarios；
②Dynamic measurement alerts: The frequency of measurement alert tones changes in real time based on ambient radiation levels, making it easy to interpret；
③Auto-sensing backlight: Display brightness can be adjusted manually or automatically adjusted based on ambient light；
④One-Click Data Logging: During inspection tasks, data can be saved with a single button press, facili-tating on-site inspection logging and traceability；
⑤Multiple Alarm Modes: Features multiple alarm modesincluding audible, visual, and vibration alerts—when radiation levels exceed thresholds， providing multiple layers of safety protection；
⑥Radiation Data Networking: Inspection data supports wireless transmission to regulatory platforms, facilitating information statistics， analysis， and management (optional).
Technical Specifications
|
Product Model |
AP3100AB-15 |
|
Detector Type |
End-window G-M tube |
|
Effective Window Diameter |
≥45mm |
|
Measuring Range |
0.01uSv/h~5mSv/h |
|
Energy Range |
a：≥2MeV；β：≥100keV；X、y：20keV~3MeV |
|
Sensitivity |
5.8cps/uSv/h(@662keV，137Cs) |
|
Units |
cps、Sv/h、Bq/cm² |
